CMI 模塊

CMI模塊（Combined Multiple IO）專為靈活的I/O擴展能力而設計，用戶可根據需要擴展各種I/O接口。CMI模塊包括LAN (RJ45/M12)、PoE (RJ45/M12)、COM、DIO、LPT/PS2、DisplayPort、DVI和VGA。

產品圖 產品型號 Category Description Connector Compatible Model

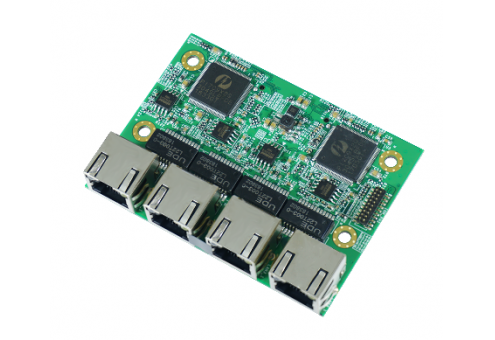

CMI-LAN01 LAN CMI Module with 4x Intel GbE LAN, RJ45 Port 4x RJ45 DS-1200 Series
DS-1100 Series
DI-1000 Series
DX-1100
DX-1000
GM-1000
CMI-M12LAN01 LAN CMI Module with M12 Connector, 4x Intel GbE LAN 4x M12 DS-1200 Series
DS-1100 Series
DI-1000 Series
DX-1100
DX-1000
GM-1000

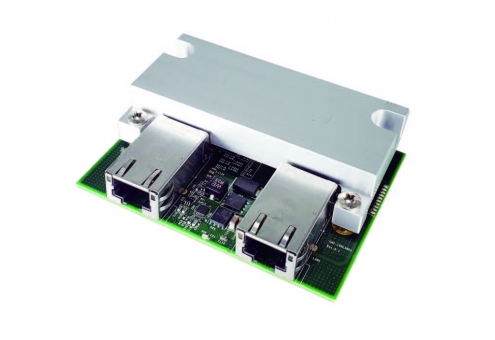

CMI-10GLAN01 LAN CMI Module with 2x Intel 10GbE LAN, RJ45 Port 2x RJ45 GM-1000

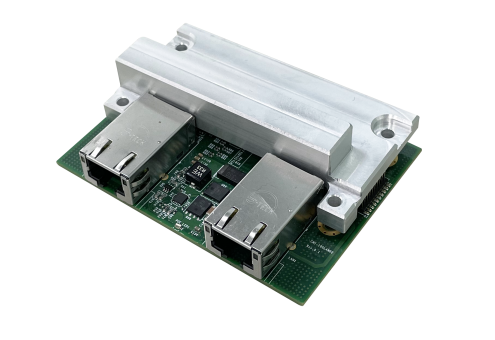

CMI-10GLAN02 LAN CMI Module with 2x Intel 10GbE LAN, RJ45 Port 2x RJ45 GP-3000

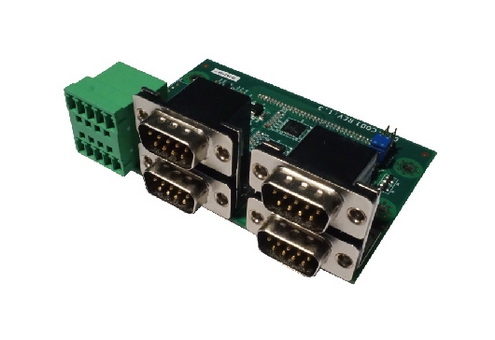

CMI-CD100 I/O CMI Module with 4x RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out) 4x DB9 DS-1100 Series

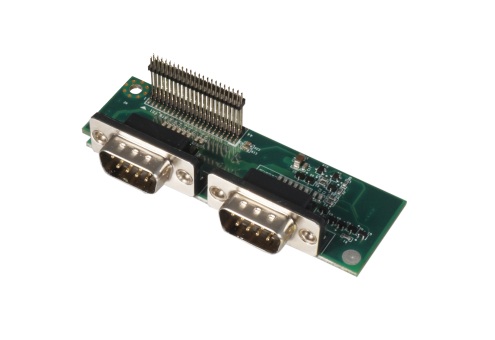

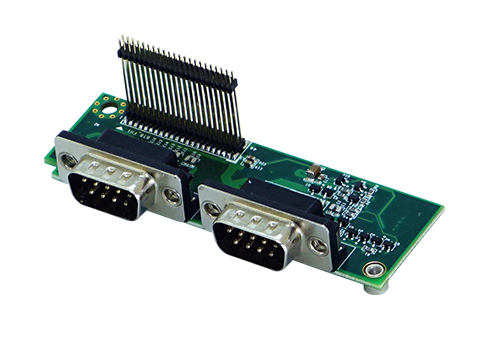

CMI-COM01 I/O CMI Module with 2x RS232/422/485 (Support 5V/12V) 2x DB9 DX-1000
DX-1100
GM-1000

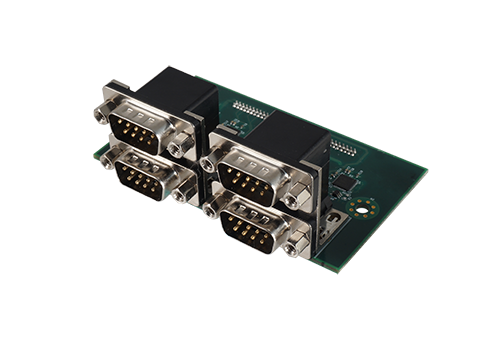

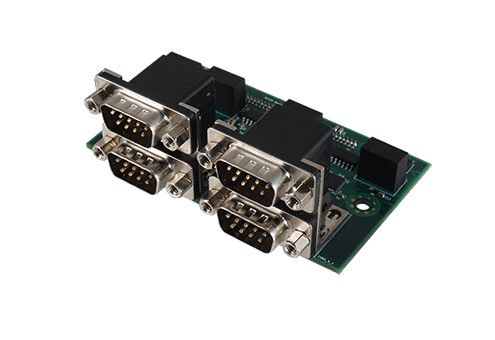

CMI-COM02 I/O CMI Module with 4 x RS232/422/485 (Support 5V/12V) 4x DB9 DS-1200 Series

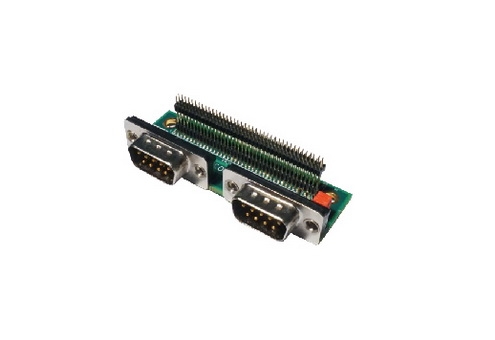

CMI-COM03 I/O CMI Module with 2x RS232/422/485 (Support 5V/12V) 2x DB9 DC-1200
CMI-COM04 I/O CMI Module with 2x RS232/422/485 (Support 5V/12V) 2x DB9 GP-3000
CMI-ICOM01 I/O CMI Module with 4 x isolated RS232 4x DB9 DS-1200 Series

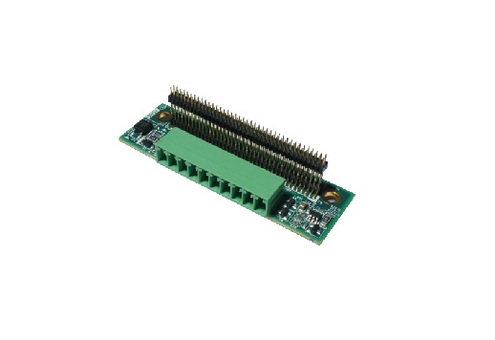

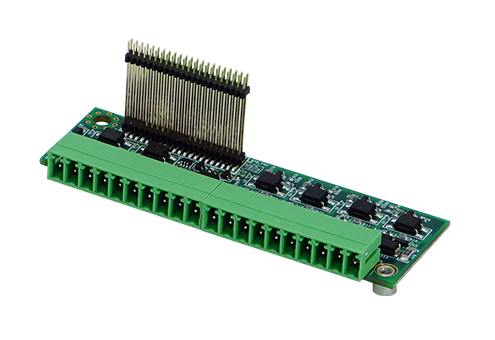

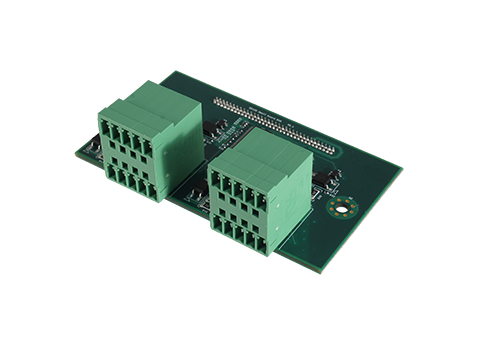

CMI-DIO01 I/O CMI Module with 16x Optical Isolated DIO (8 in/8 out) 16x Optical Isolated DIO (8DI, 8DO) DX-1000
DX-1100
GM-1000
CMI-DIO02 I/O CMI Module with 16DIO (8in 8out) 16x Optical Isolated DIO (8DI, 8DO) DS-1200 Series
CMI-DIO03 I/O CMI Module with 8x Optical Isolated DIO (4 in/4 out) 8x Optical Isolated DIO (4DI, 4DO) DC-1200
CMI-DIO04 I/O CMI Module with 16x Optical Isolated DIO (8 in/8 out) 16x Optical Isolated DIO (8DI, 8DO) GP-3000
CMI-ICD100 I/O CMI Module with 4x Electrical Isolated RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out) 4x DB9 DS-1100 Series

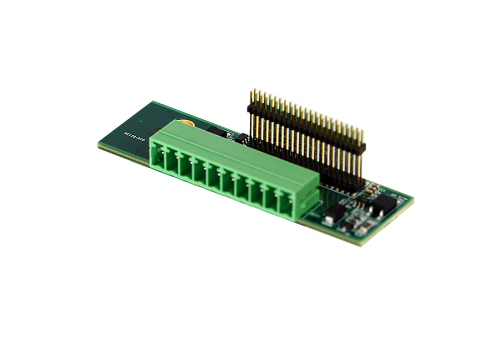

CMI-DIO100 I/O CMI Module with 8x Optical Isolated DIO (4 in/4 out) 8x Optical Isolated DIO (4DI, 4DO) DA-1100
DA-1000

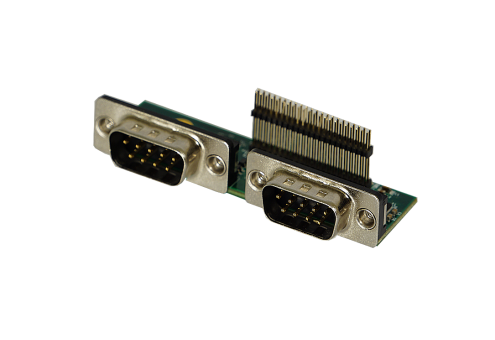

CMI-COM102 I/O CMI Module with 2x RS232/422/485 (Support 5V/12V) 2x DB9 DA-1100
DA-1000

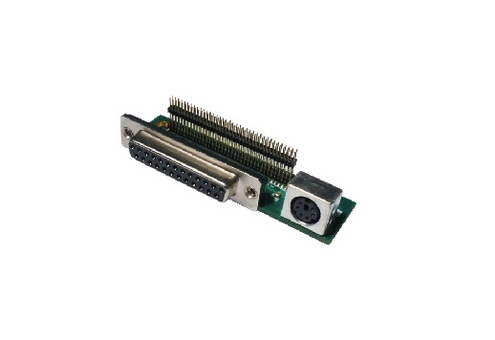

CMI-LPPS102 I/O CMI Module with 1x LPT Port, 1x PS/2 1x Parallel and 1x PS/2 DA-1100
DA-1000

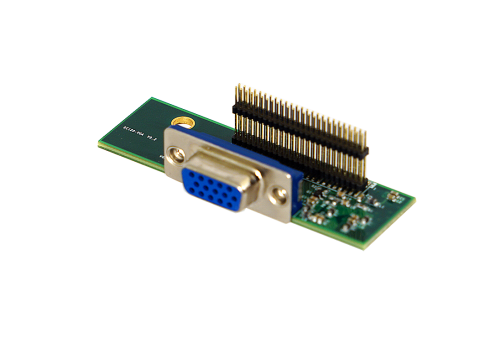

CMI-VGA101 Display CMI Module with 1x VGA Port 1x VGA DA-1100
DA-1000

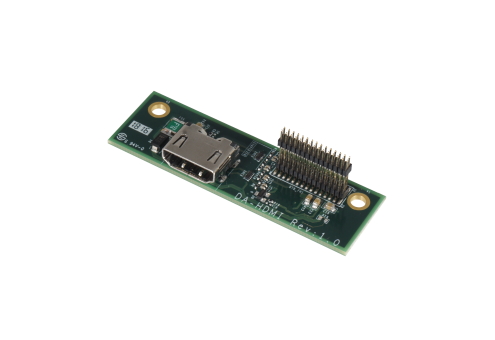

CMI-HD01 Display CMI Module with 1x HDMI Port 1x HDMI DA-1100
DA-1000

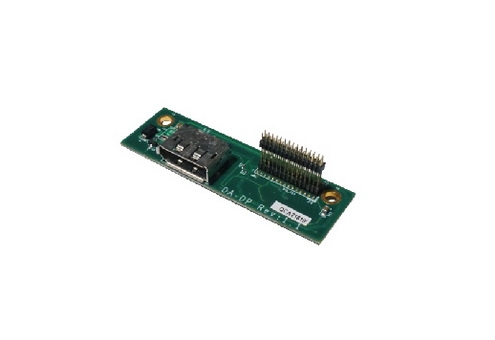

CMI-DP101 Display CMI Module with 1x DisplayPort 1x DisplayPort DA-1100
DA-1000

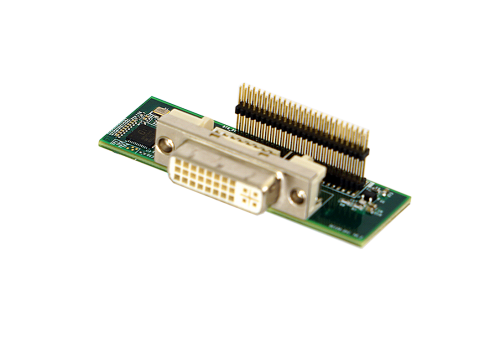

CMI-DVI101 Display CMI Module with 1x DVI-D Connector 1x DVI-D DA-1100
DA-1000

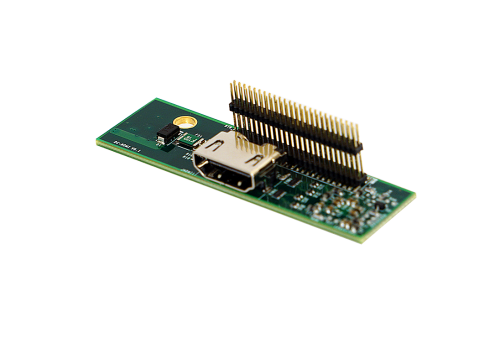

CMI-HD02 Display CMI Module with 1x HDMI Port 1x HDMI DC-1200

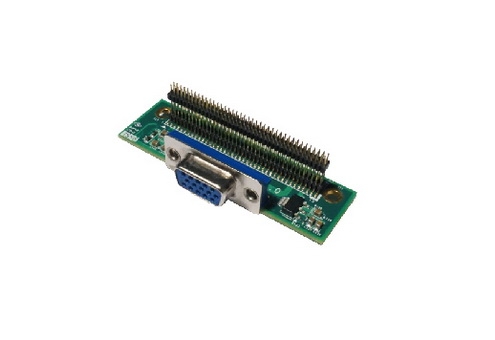

CMI-VGA01 Display CMI Module with 1x VGA Port 1x VGA DC-1200

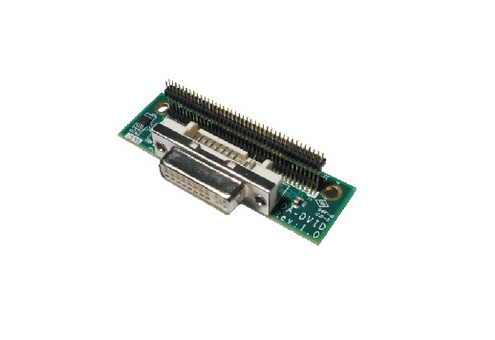

CMI-DVI01 Display CMI Module with 1x DVI-D Connector 1x DVI-D DC-1200
